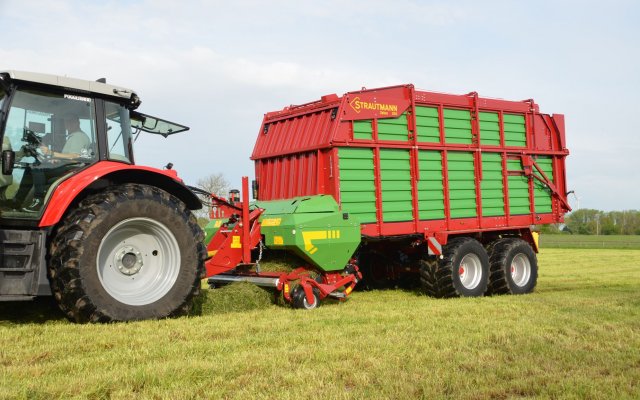

Zelon – Outstanding low drag resistance with short cutting length
Compact dimensions, low power requirements and continuous flow of material are the benefits of the Zelon. This means it loads quickly, is gentle on the fodder and save fuel!
Zelon
Efficiency already from 24 m³!
This forage wagon is ideally suited for self-mechanised dairy farms or machine pools that value high forage quality with low power requirements.
- Zelon 250, 290 (DO) und 360 (DO)
- loading capacity 24 – 35 m³ (according to DIN 11741)
- 1.80 m wide camless pick-up
- Adjustable roller crop guard
- Optional 500 mm wide additional guide roller mounted behind the pick-up

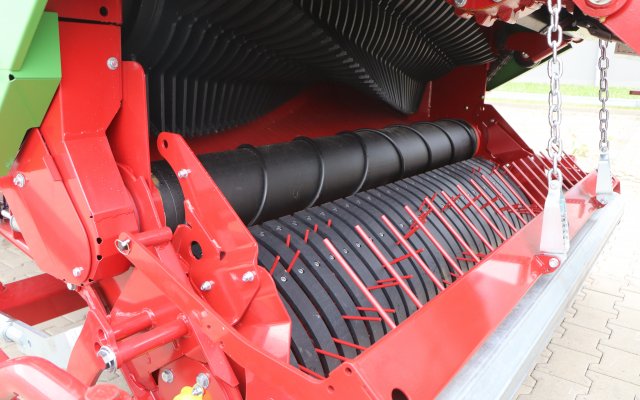

- Exact-Cut cutting unit with 37 knives and 39 mm cutting length
- Powder coated steel floor
Flexible charging – Saving time and effort

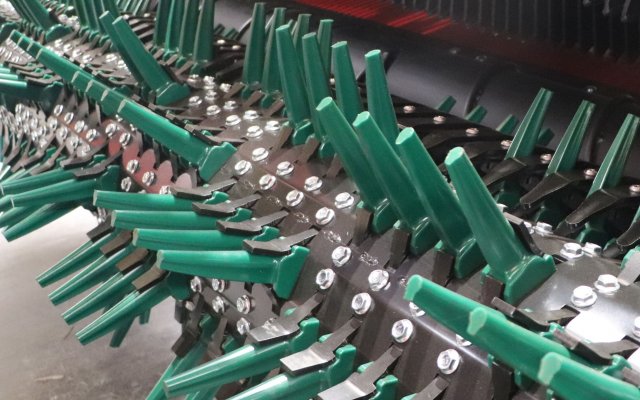

Minimum wear and optimum adaptation to ground due to the innovative Flex-Load pick-up with plastic tines.
The system for efficient charging
Due to the interaction of different components, the Continuous Flow ensures excellent easy towing with little power required. Pick-up, Flow Roller, rotor and Exact-Cut cutting unit are ideally matched to each other and complement each other perfectly. This results not only in excellent cutting quality but also in easy towing, thus saving power, money and time.
For optimum fodder quality
- 1.50 m wide rotor with 5 tine rows
- Spiral-shaped conveyor tines
- Standard 37 knives with two cutting edges each for double service life
- 39 mm theoretical cutting length
- Stable, multi-purpose all-steel construction
- Slip-proof transport floor
- Powder coated steel floor
- Optimum filling degree of the loading space

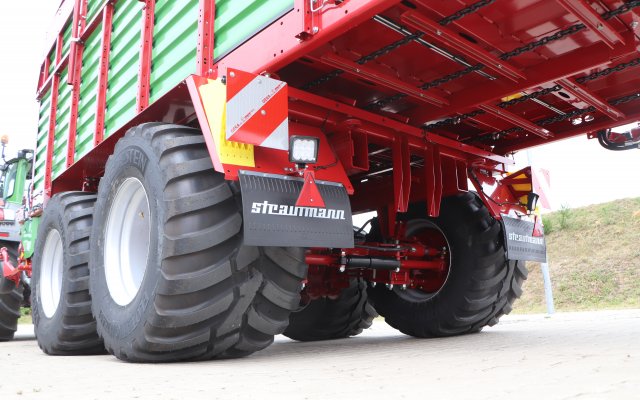

- Suspended 13 t boogie tandem chassis
- 40 km/h
- 16 t chassis optional
- Optional passive steering
- Tyres up to 710/40 R22.5
- Different operating variants enable adapted and convenient operation of the Zelon
- E-Control
- Strautmann ISOBUS
