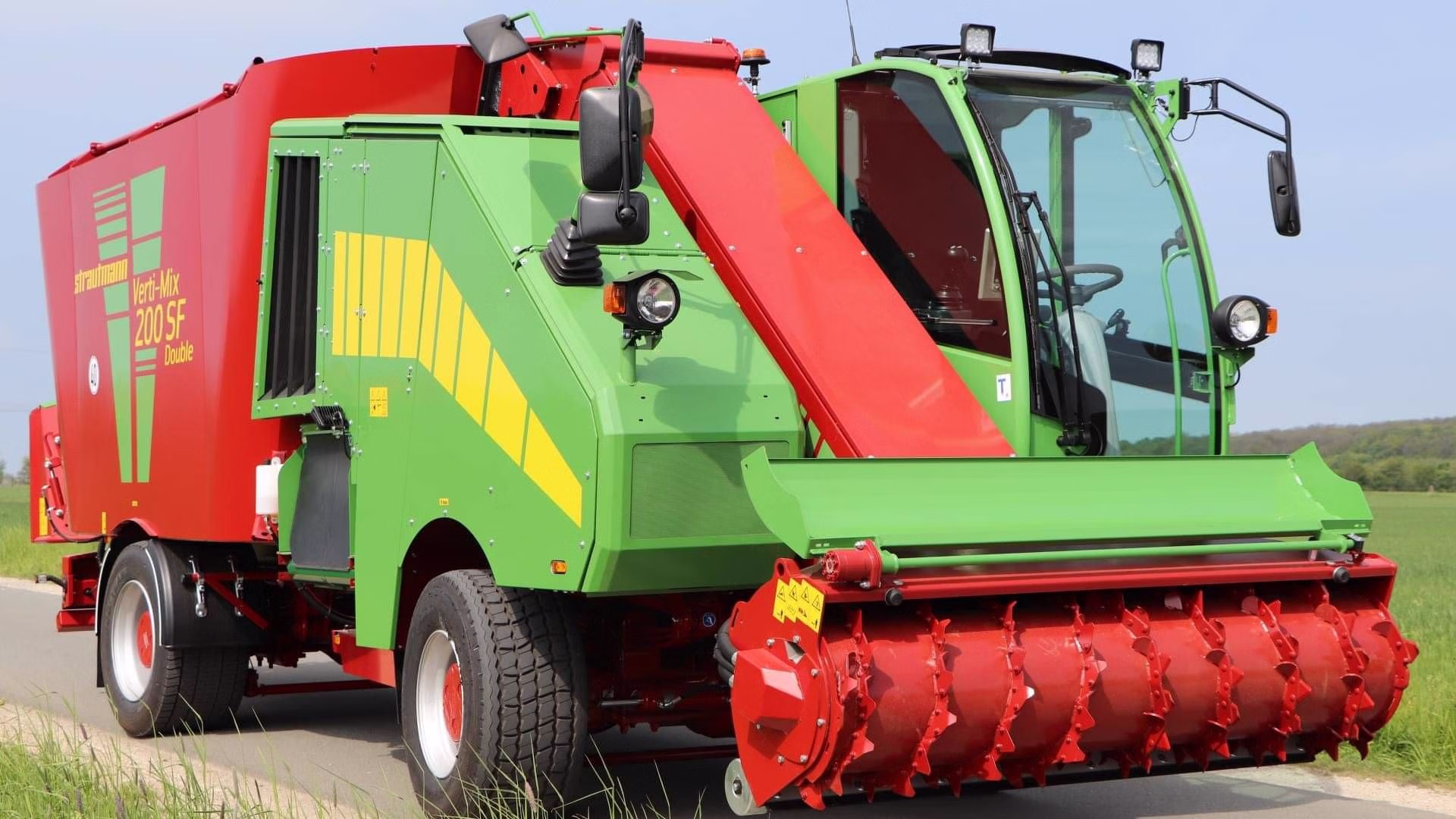

Verti-Mix SF – The self-propelled model
With an efficient milling cutter and the new powerful 6-cylinder engine with emission level 5, the Verti-Mix SF is the optimal and complete solution for professional feeding.
Verti-Mix Double SF
Self-propelled fodder mixing wagons make the labour-intensive procedure of dairy cattle feeding considerably easier and save time, money and work. Homogeneously mixed ingredients prevent the cows from selecting the fodder.
- Usable mixing capacity of 11 – 20 m³
- Silo picking-up and feeding with one machine
- Accurate feeding
- 6-cylinder engine for maximum power and low consumption
Variability and strength for any purpose
Due to the patented knife adjustment system, the IMS mixing auger can be perfectly adapted to your specific conditions of use. The robust and low-maintenance angular gear ensures a long service life even under challenging conditions.
- Low power requirement
- Optimum fodder structure
- Homogeneous mixing
- Energy-saving short mixing times
Elevator
- Mounted at the centre behind the milling cutter for quick, gentle material flow
- Smooth running, low-maintenance elevator conveyor made of rubber
- Hydraulically powered
- Infinitely variable speed adjustment
- Reversible for exact picking-up of components
Fodder picking-up & transport
- Clean picking-up right to the bottom
- Fast running elevator conveyor for clean feed flow
- Optimum parabolic trajectory from the elevator into the mixing container
- Automatic cutter arm lowering for quick and effortless working
- Less wastage/spoilage

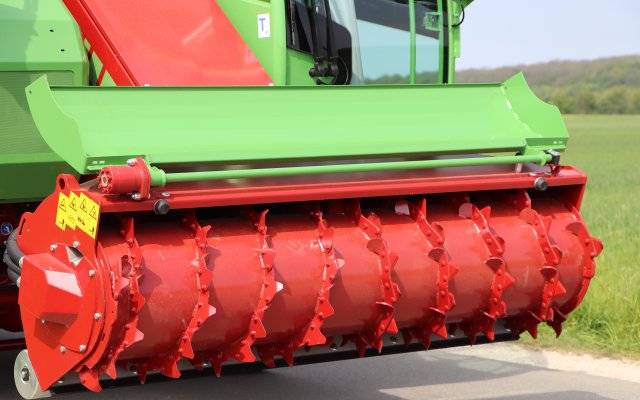

High-performance milling cutter
- 2 m in width
- 114 knives efficiently take the fodder out of the silo
- 60 cranked and 54 straight knives (option)
- Helical arrangement of knives for maximum picking-up performance with clean cut surface

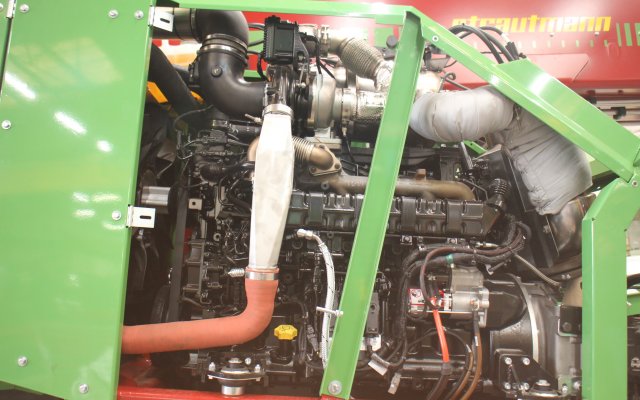

- 6-cylinder engine
- Powerful and economical
- Turbo-diesel engine with water cooling
- 129 kW/175 HP at 1,900 rpm
- 714 Nm at 1,500 rpm

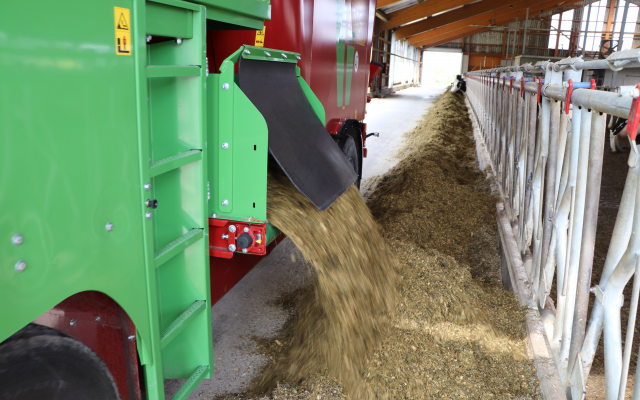

Adapted to your enterprise
- Front Cross Conveyer
- Right hand discharge
- Left hand discharge
- Sliding Hydraulic option

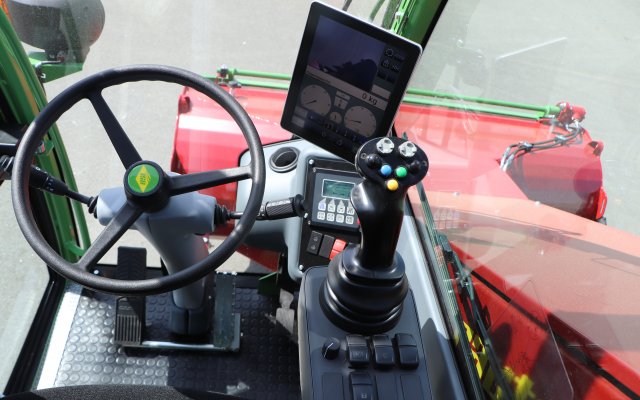

The comfortable operator‘s cab
- Safety glazing on 3 sides with curved front screen for optimum view
- Heated outside mirrors
- Air-suspended driver seat
- Adjustable steering column
- Easy and intuitive operating
ICS (Intelligent Control System) Everything at a glance
- Space-saving & clearly organised
- 3 displays in 1 (milling mode, travelling mode and distributon mode)
- Free assignment of the individual functions
- 10.4´´ touch-screen, extremely scratch-proof and reliable
- Optimum control by means of cross communication between camera, CAN bus and weighing device
Weighing device
- Standard integrated programmable weighing device
- Data transfer option (via USB stick) for feed control and optional AV 70 additional Display
PTM AV 70 – Radio remote control
- 30 m of range
- Multi-Link compatible
- Individual fixing on the charging vehicle by means of integrated magnet
- Can be easily carried by hand
