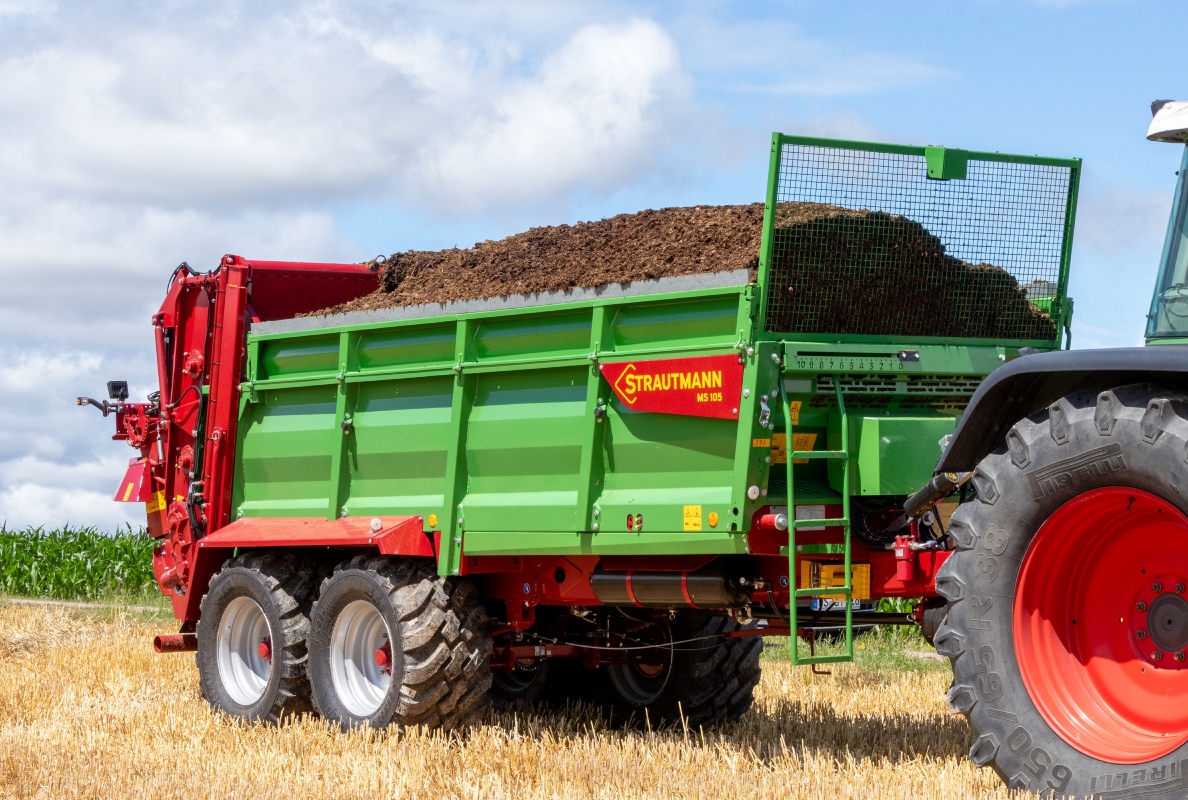

MS-Spreader – All-rounder in action
The MS-spreader series represents the advanced development of the proven BE spreader models. Different spreading unit options and the optional plastic floor enable a versatile use.
See the MS 901 in action here!
MS Spreader
The all-rounder
With the screwed all-steel trough now being powder-coated, the MS spreader models are a perfect complement to the Strautmann spreader portfolio.
- MS 801 – 1401
- 8 – 15 t GVWR
- 2 spreading unit options
- Safe in use and robust

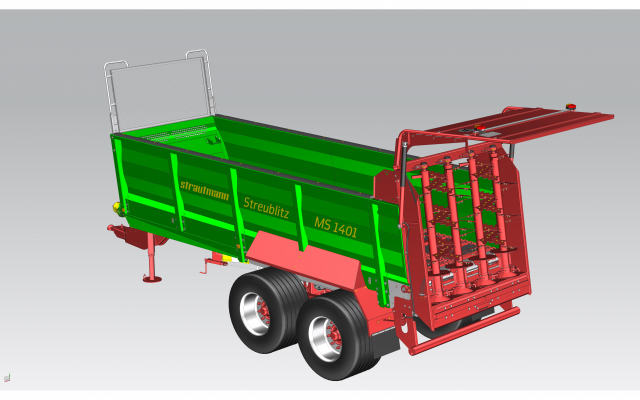

4-beater spreading unit
- Standard for all MS spreader models
- Spreading widths between 6-8 m due to fan-shaped spreading tines

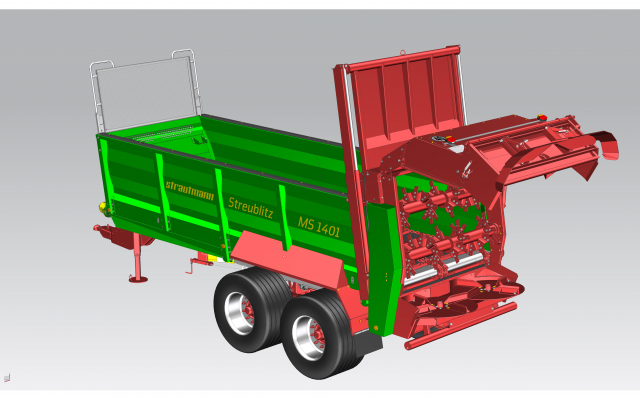

2-disc wide-angle spreading unit
- Optional extra
- Spreading beaters crush the spreading material and feed it to the discs
- Due to adjustable throwshovels, spreading widths of up to 21 m are reached
Spreader trough
- All-steel trough
- KTL-powder-coated
- 250 mm compost extension available as an optional extra
- Easy increase of volume for light spreading materials

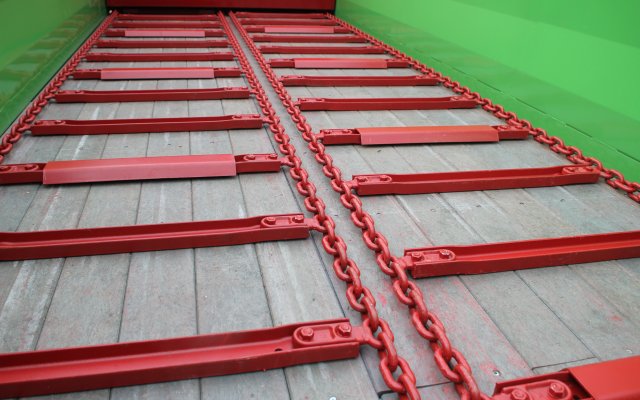

Robust transport floor
MS 801/901:
- Standard wooden floor
- 4 x 10 mm strong transport floor chain
- Optional plastic floor
MS 1201/1401:
- Standard plastic floor
- 4 x 13 mm strong transport floor chains
- Roof profiles on the transport floor strips ensure a clean transport of fine-grained spreading materials
Single axle
- Favourable price-performance ratio
- Easy towing, in particular with large tyres
- High load

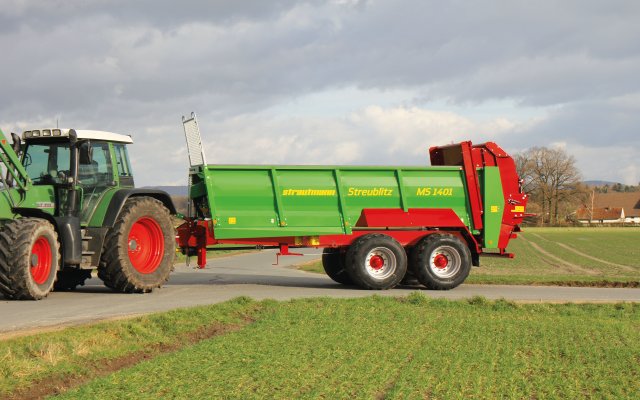

Tandem axle
- Reduced ground pressure in combination with wide tyres
- Protection of ground
- Robust 4-spring chassis with comfortable driving characteristics
Direct connection
- Standard
- All functions are switched via the tractor control valve
- Flexibly adjustable by means of telescopic bracket
E-control light
- Operation of hydraulic functions via direct tractor connection
- Adjustment of transport floor speed via rotary potentiometer
- Speed monitoring with transport floor stop
- Switching on and off of work lights
E – Control
- Comfortable operation of hydraulic functions via toggle switches
- Adjustment of transport floor speed via rotary potentiometer
- Speed monitoring with transport floor stop
Transported loads counter
- As a supplement to direct connection and easy-to-use control
- Transported loads and working hours are counted (erasable)
