Magnon 8 – The compact high-performance forage wagon for professionals
This self loading forage trailer embodies the high harvesting performance and short cutting lengths with compact dimensions and low power requirements.

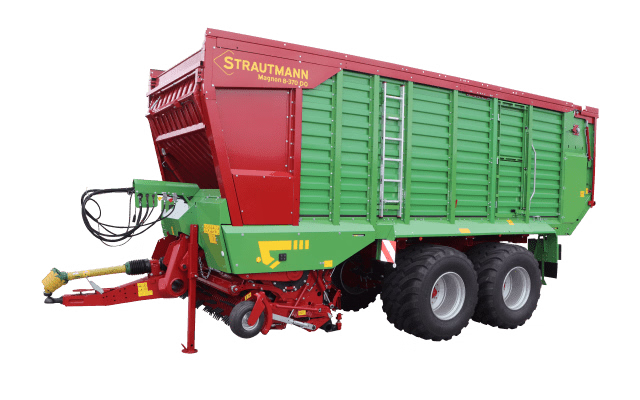

Magnon 8
Enormous loading capacity with compact design
The Magnon series is known for high harvesting performance and is impressive at the silo with high unloading speeds thanks to the proven swivelling front wall. This makes this forage wagon generation unrivalled in terms of throughput and impact. The Magnon 8 now brings these advantages in a compact design.
- 3 models with 36, 40 and 44 m³ load volume
- Cutting length of 35 mm
- Well-known Continuous Flow loading unit
- Flex-Load Pick-up
Minimum wear and optimum adaptation to ground due to the innovative Flex-Load pick-up with plastic tines

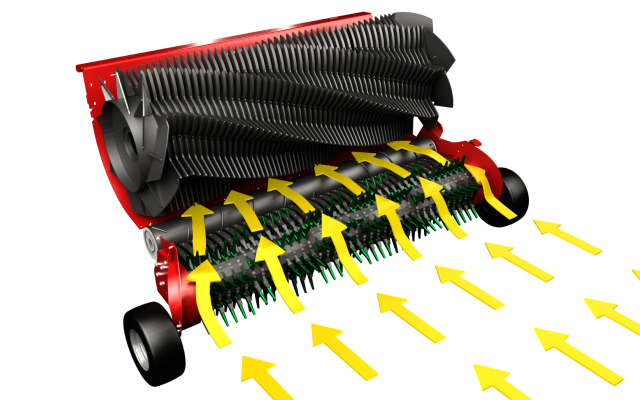

The system for efficient charging. Due to the interaction of different components, the Continuous Flow System ensures excellent performance with little power required. Pick-up, Continuous Flow roller, rotor and Exact-Cut cutting unit are ideally matched to each other and complement each other perfectly. This results not only in excellent silage quality but also in easy towing, thus saving power, money and time. Technical modifications reserved.
High loading capacity and best forage quality
- 2.10 m total width with 8 tine rows
- Spiral-shaped conveyor tines
- Wide swathes are compactly conveyed to the conveyor duct
- Standard 48 knives with two cutting edges each for double service life
- Cutting length of 35 mm
- Solid all-steel superstructure
- Hydraulically swivelled front panel
- Easy access
- Optimum filling degree
- Steel floor
- Practical maize plate
Different chassis options ensure optimum driving comfort and safety at any time:
- Boogie tandem chassis as standard
- Hydraulic tandem chassis
- Hydraulic tridem chassis
- Passive steering axle
- Mechanical & Electronic forced steering axle
- Intuitive and comfortable ISOBUS Operation via tractor terminal as standard
- right-hand terminal Smart 570 as an option
- 5.7″ coloured screen
- Optimum control of the charging and discharging process and safe road travel
- Numerous automatic functions ensuring intuitive and comfortable machine operation
