Magnon 11: Shorter cutting – better feeding
With a particularly short cutting length of only 22 mm, the self loading forage trailer Magnon 11 takes fodder quality to a new level – For utmost milk yields.

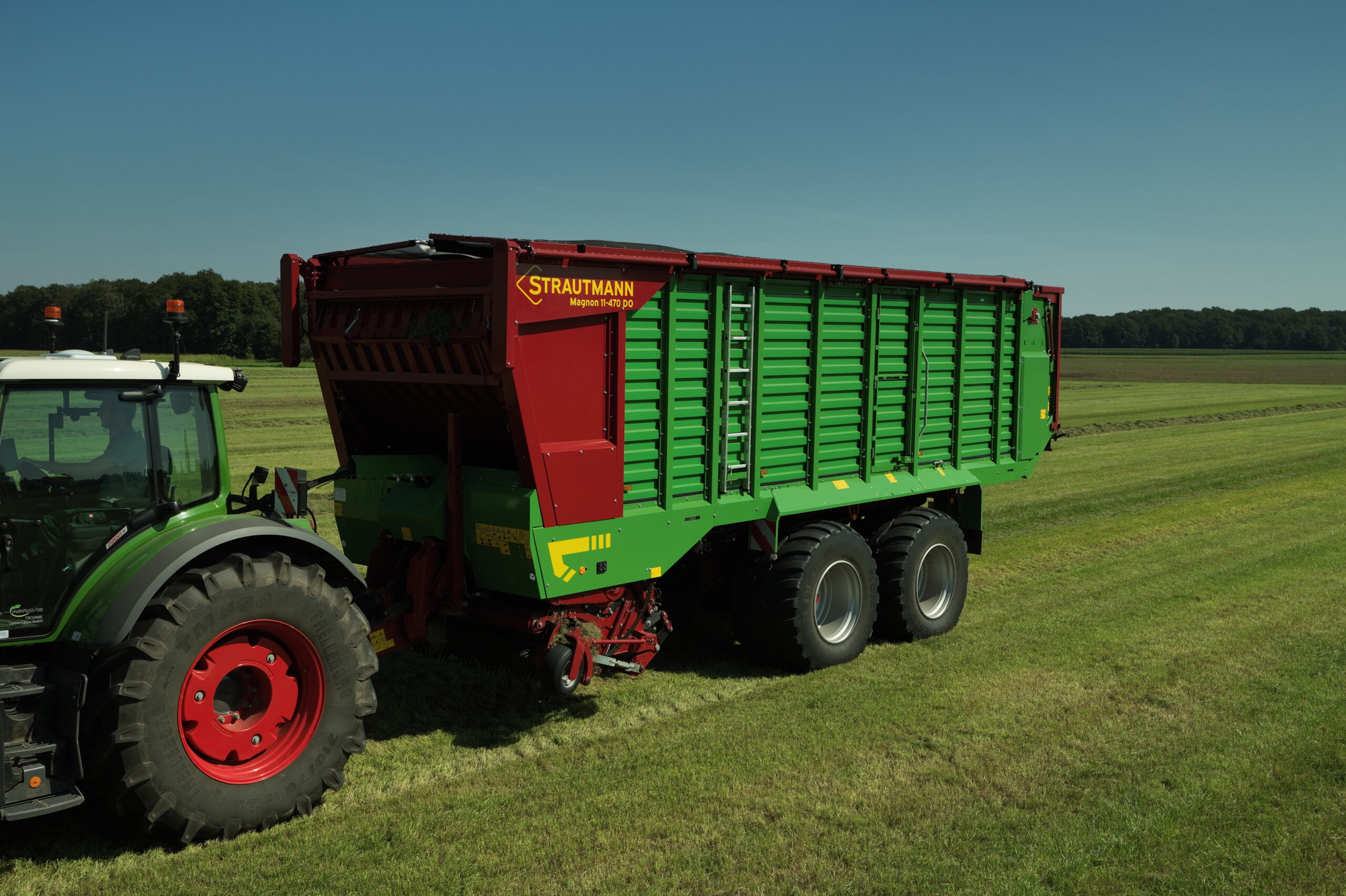

Magnon 11
No one cuts shorter
The Magnon series are well-known for their high harvesting performance and excel at the silo by high discharge speeds due to the proven swivelling front panel. Thus, these forage wagon generations cannot be surpassed in terms of throughput rate and power. With its very short cutting length, the Magnon 11 now provides these advantages.
- Loading capacity 42 – 52 m³ (according to DIN 11741)
- 22 mm theoretical cutting length

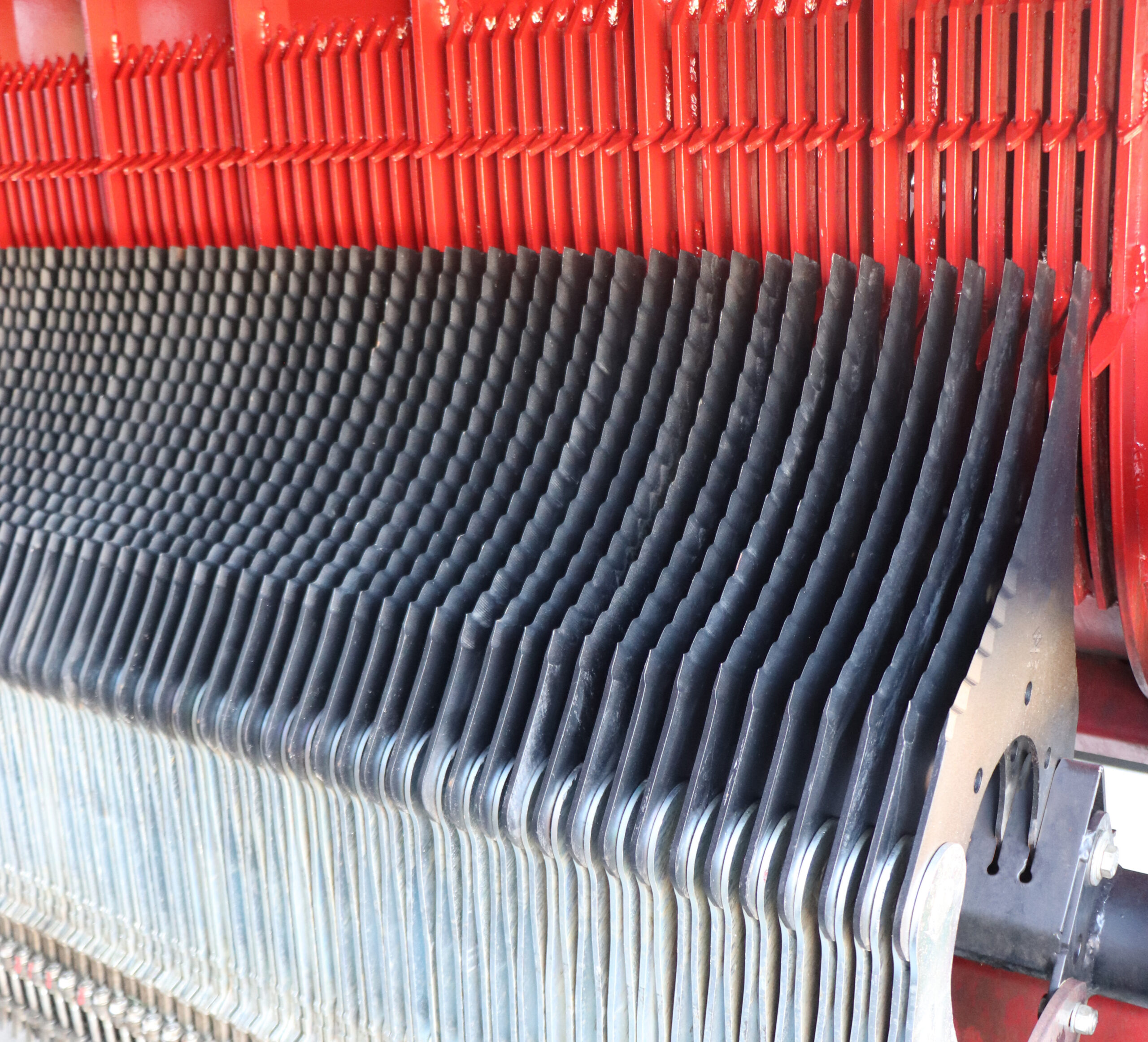

- Exact-Cut cutting unit with 84 turnable knives
- 3000 Nm protection for reliable power transmission under any conditions
Minimum wear and optimum adaptation to ground due to the innovative Flex-Load pick-up with plastic tines
The system for efficient charging. Due to the interaction of different components, the Continuous Flow System ensures excellent performance with little power required. Pick-up, Continuous Flow roller, rotor and Exact-Cut cutting unit are ideally matched to each other and complement each other perfectly. This results not only in excellent silage quality but also in easy towing, thus saving power, money and time. Technical modifications reserved.
Unique fodder quality due to extremely short cutting length
- Standard equipment with 84 knives with two blades each for double the service life
- 22 mm theoretical cutting length
- 37% shorter cutting length with only 20% more power required compared to the Magnon 10 model

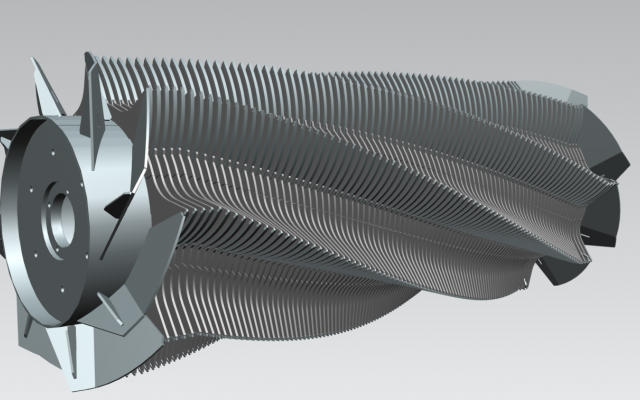

- 2.10 m overall rotor width with 8 tine rows
- Helically arranged conveying tines
- Wide swathes are compactly conveyed to the conveyor duct by means of 105 mm wide integral augers
- Solid all-steel superstructure
- Hydraulically swivelled front panel
- Easy access
- Optimum filling degree
- Steel floor
- Practical maize plate
Different chassis options ensure optimum driving comfort and safety at any time:
- Hydraulic tandem chassis
- Hydraulic tridem chassis
- Passive steering axle
- Mechanical & Electronic forced steering axle
- Intuitive and comfortable ISOBUS Operation via tractor terminal as standard
- Right-hand terminal Smart 570 as an option
- 5.7″ coloured screen with touch operation
- Optimum control of the charging and discharging process and safe road travel
- Numerous automatic functions ensuring intuitive and comfortable machine operation
