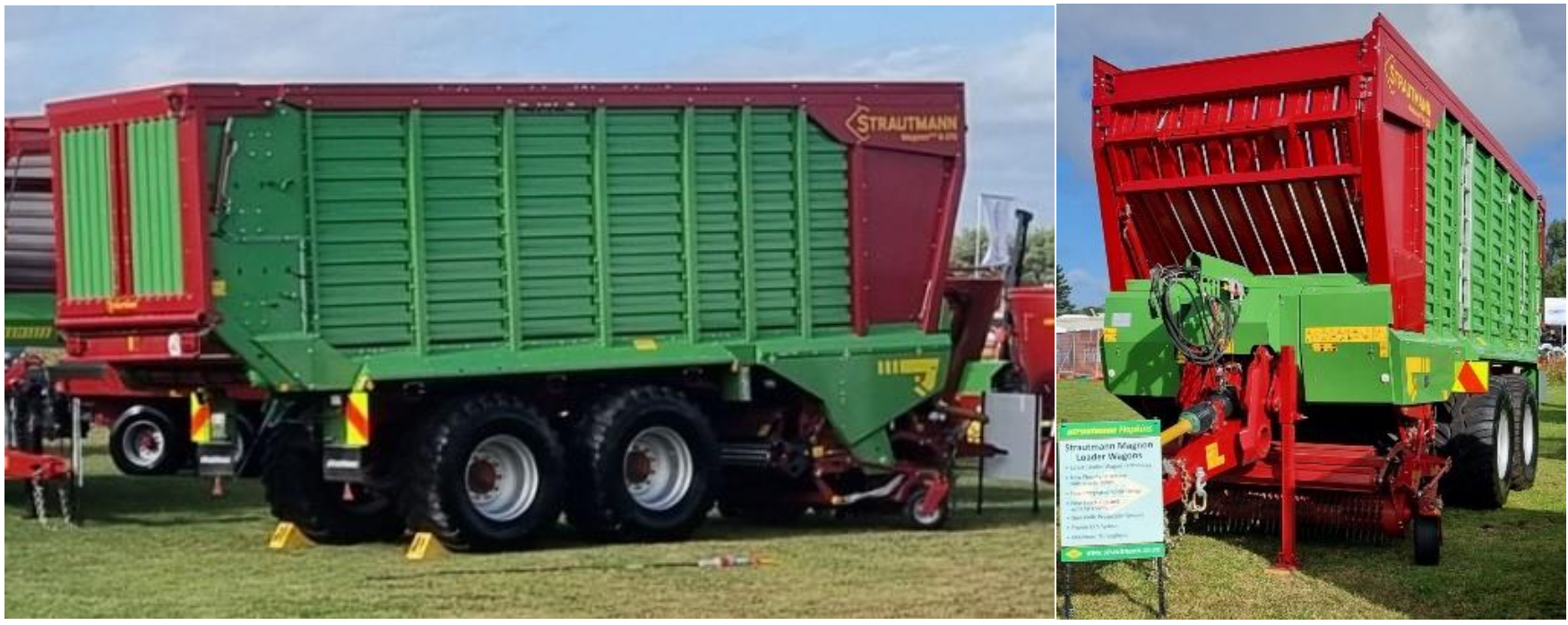

2024 Strautmann Magnon CFS 8-370 Loader Wagon

Latest Loader Wagon technology from Strautmann, 36m3 Capacity

Features include:-

• New Flex-Load Pick-up system (Gen I) with plastic tynes, 2.25m wide, chain drive

• New Integrated Rotor design

• New Exact-Cut cutting unit with 44 knives, theoretical chop length 35mm

• New Knife Protection System with spot-on triggering mechanism, auto reset

• The proven Continuous Flow System (CFS) for optimum material flow through the Rotor

• Robust and Intelligent Solid Structural design for strength and maximum capacity

• Swivelled front panel for maximum compaction and capacity of loaded material, +5m3

• 90mm Extensions

• Tandem sprung bogie axle with Passive Steering, Automatic steering lock in Reverse

• Tyres 710/50 R26.5 170D 10 hole stud Vredestein Flotation Trac

• Combination Air & Hydraulic brakes fitted

• Low drawbar with Ring Hitch 4T coupling Load

• Electro-Hydraulic controls, Operation via ISOBUS 5” Terminal, Load Sensing Hydraulics

• PTO Shaft with one side wide angle 6 spline 1 3/8” and 2200 NM cam clutch

• Sensing Roller behind Pick-up

• Trailer Lights, Outline Marker and Side Marking Lights, Beacon and extra working Lights

• Tare weight 10,400kg

• Electric connection for silage inoculation pump

• Dimensions: 36m3 capacity, Length 9.25m, Width 2.81m (outside tyres), Height 3.99m
